Ref : 65750

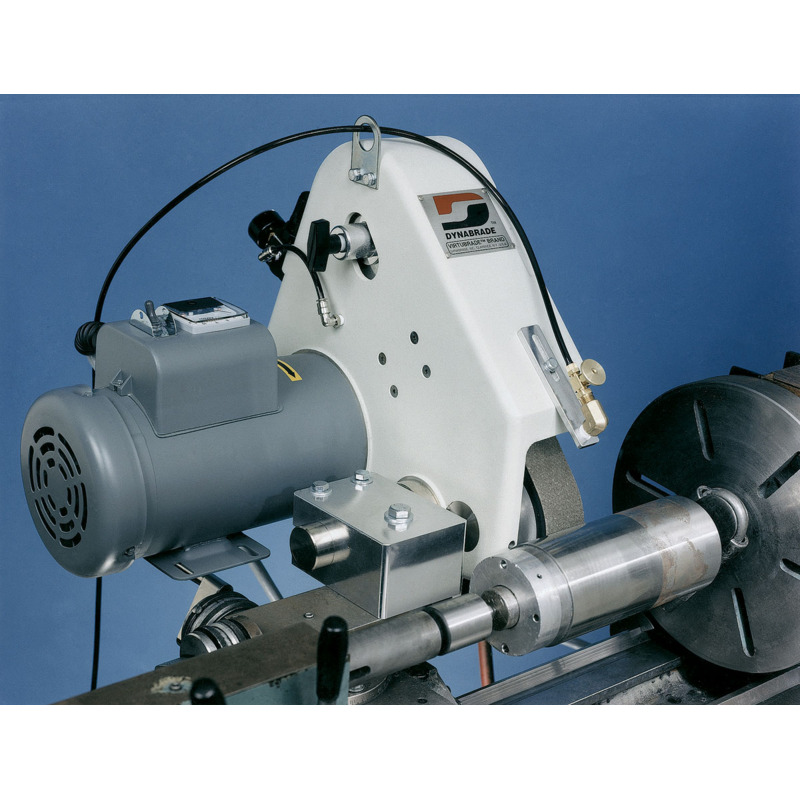

2" x 48" (51 mm x 122 cm) Electric Tool Post Grinder

3 hp, 3,450 RPM, Wet, 240 V (AC), 1 Phase, 60 Hz, 7,200 SFPM

Share

  • Mounts to Standard Lathes, for Applications from Grinding to Superfinishing. Model features air-powered belt tensioning.

  • Mounts to Standard Lathes, for Applications from Grinding to Superfinishing. Model features air-powered belt tensioning.

  • Model features fixed speed for faster cutting. Easily accessible belt tracking and tensioning adjustments.Coolant nozzle with adjustable flow valve.

  • Model features fixed speed for faster cutting. Easily accessible belt tracking and tensioning adjustments.Coolant nozzle with adjustable flow valve.

  • Easy to dress contact wheel. Machine has water-tight on/off switch, and built-in ammeter for measuring motor load. 90 durometer, fixed 66619 Contact Wheel is standard.

  • Easy to dress contact wheel. Machine has water-tight on/off switch, and built-in ammeter for measuring motor load. 90 durometer, fixed 66619 Contact Wheel is standard.

hp
3 hp
Voltage
240
Air Pressure [Bar]
90
Frequency [Hz]
60
Height (in)
18 in
Height (mm)
457 mm
Length (in)
19 in
Length (mm)
483 mm
Max. RPM
3450
Weight (kg)
48.99 kg
Weight (lb)
108 lb
Width (in)
24 in
Width (mm)
610 mm
Current Manual (Parts Page) PD97.41
